We flute barrels on CNC machinery with flood coolant and offer a wide variety of fluting patterns. Most of our patterns are highly flexible and we can change lead in lengths, helix rates, and vary cutting depths from breech end to muzzle end, etc. We do unique patterns you won't see in other shops like Spiral Flats, Wave flutes, and Gain Twist spiral. Fluting turn around time is generally 6-7 days after receiving payment.
You can order fluting on barrels purchased from our website by noting in the order comments section the fluting pattern and the finish length [we stop 2" short] and we will add the cost of the fluting to your order then next business day.
If you send us a barrel to flute please mark Top Dead Center [TDC] 6" in front of shank for 'timed' fluting - Straight, Brux, Wave & Diamond.
We’ve had recent issues that has caused us to modify our fluting requirements
–
- Barrel blanks must be 27” OAL minimum - we can flute shorter finished lengths on those 27"+ barrels
-
Factory barrels are ‘At your own risk’
-
Chambered barrels shorter than 27” OAL are ‘At
your own risk’
-
Max flute length is 24” - i.e. we can start at 6” and can flute out to 30”. If you have a longer barrel we can start
further down the barrel if necessary.
-
Barrels already crowned should be re-crowned
*******DEALER PRICING AVAILABLE******

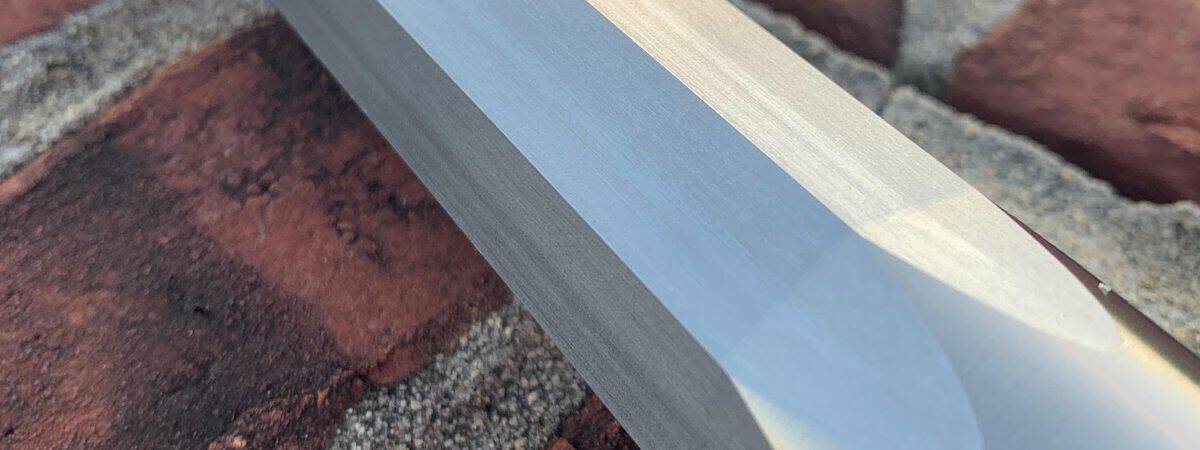

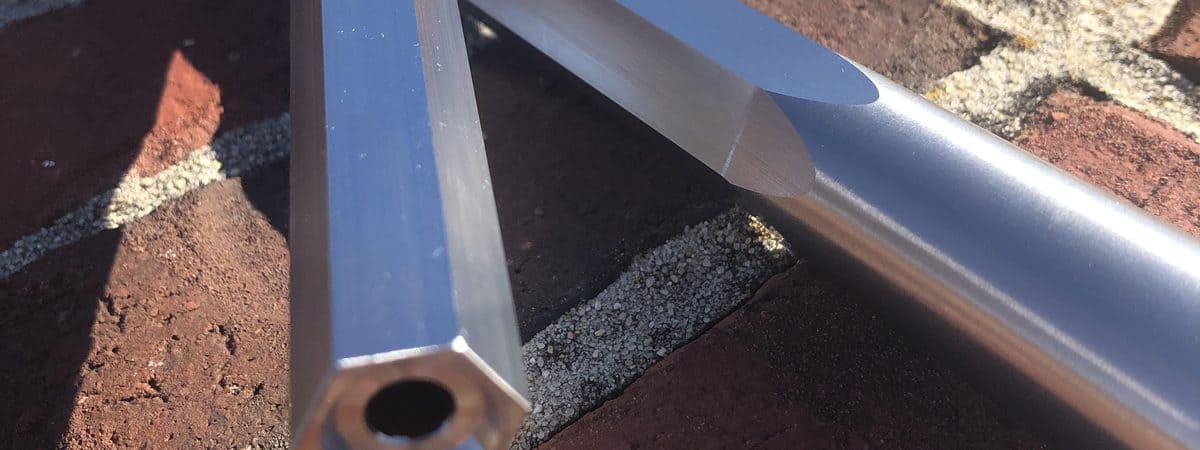

Hexagonal Flutes $150 & Octagonal Flutes $180 - call for contours that qualify

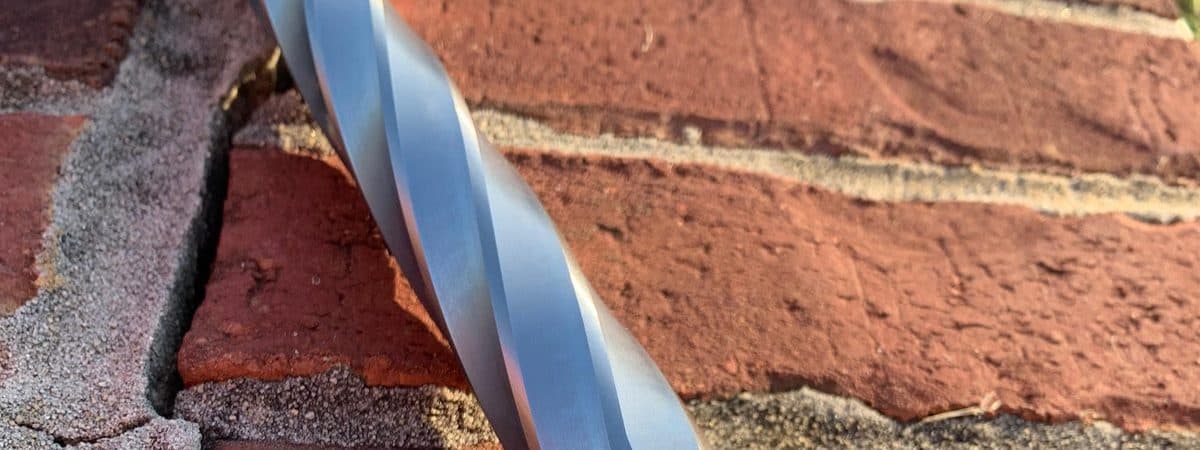

Spiral Hex Flutes $180 - call for contours that qualify

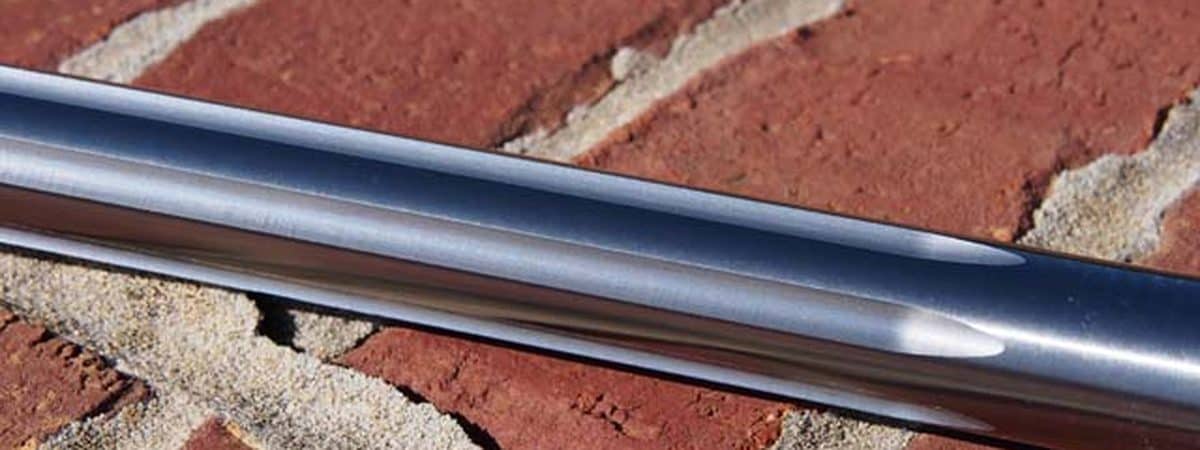

6 Straight Flutes $120 - on barrels larger than the Remington Varmint we recommend 8 flutes

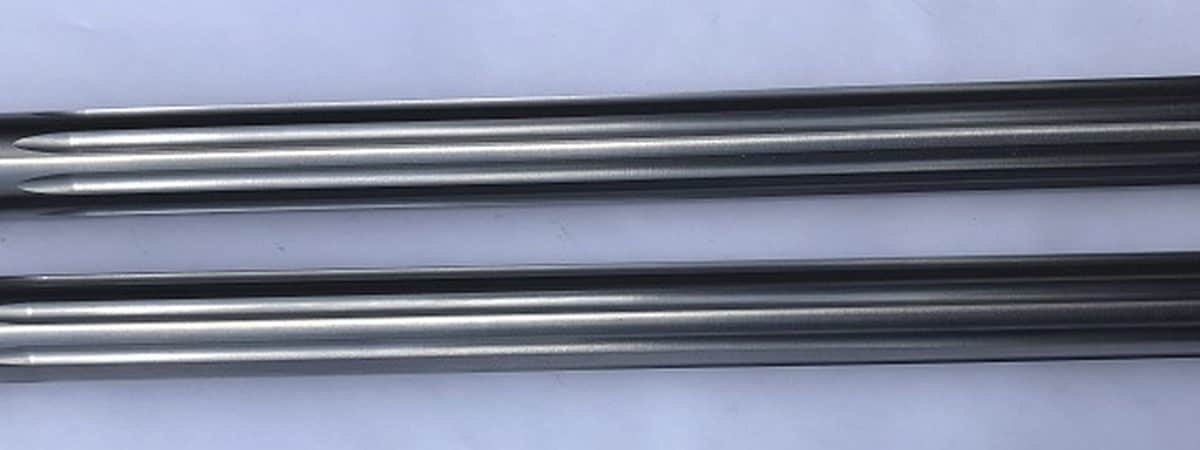

8 Straight Flutes $150 (greater than 8 flute is available, please call)

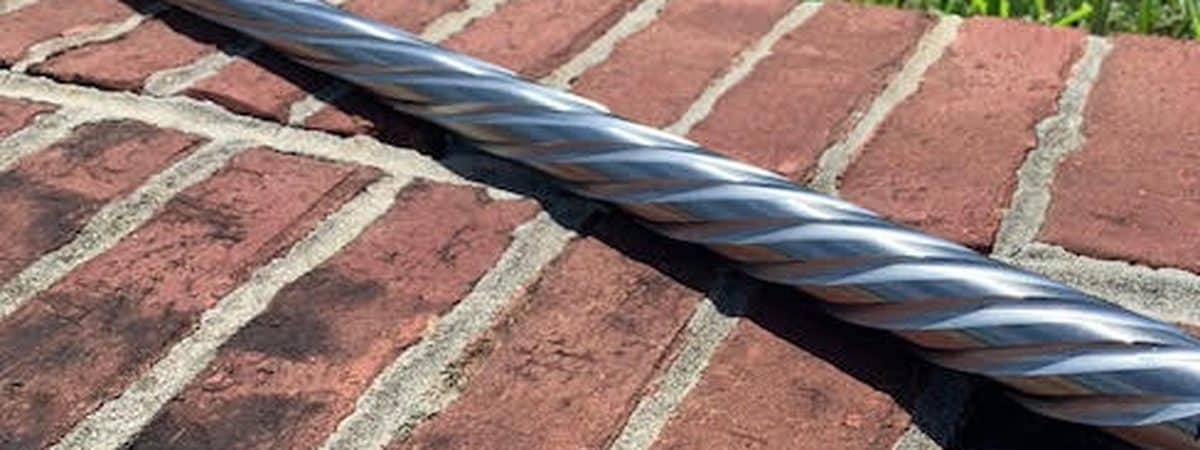

Gain Twist Spiral $150 - this is LH 1000 to 100 degrees. Our default is 1200 to 100 - image to come
Gain Twist Spiral flutes $150 right or left spiral, a constantly varying helix from breech to muzzle over the length of the flute Another SPR exclusive

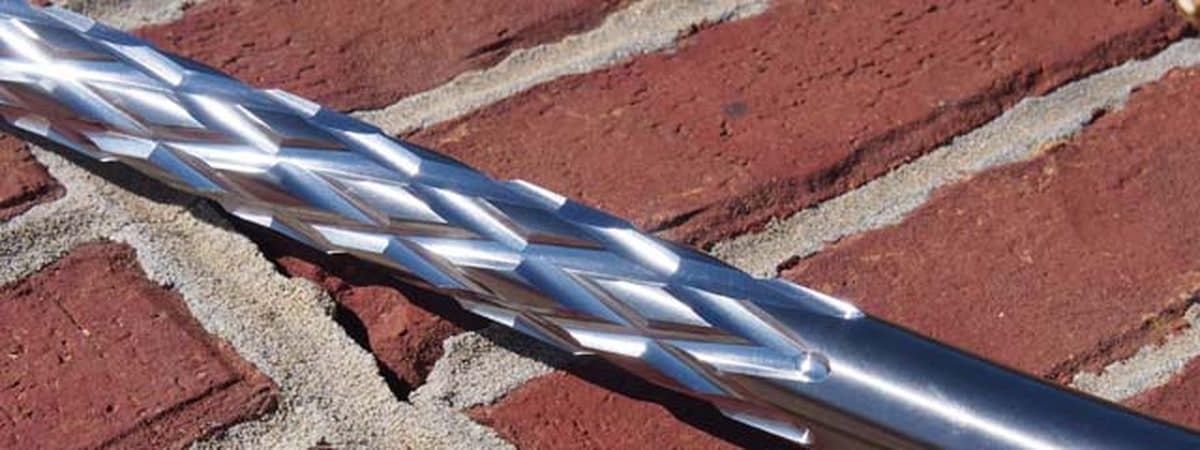

Diamond Fluting $180 this is a very aggressive pattern with high weight reduction, changing helix shortens the diamonds into squares
Spiral Fluting twist rate options The photo above is labeled in degrees of rotation. Our standard spiral [pictured below] is a 35 degree twist rate.

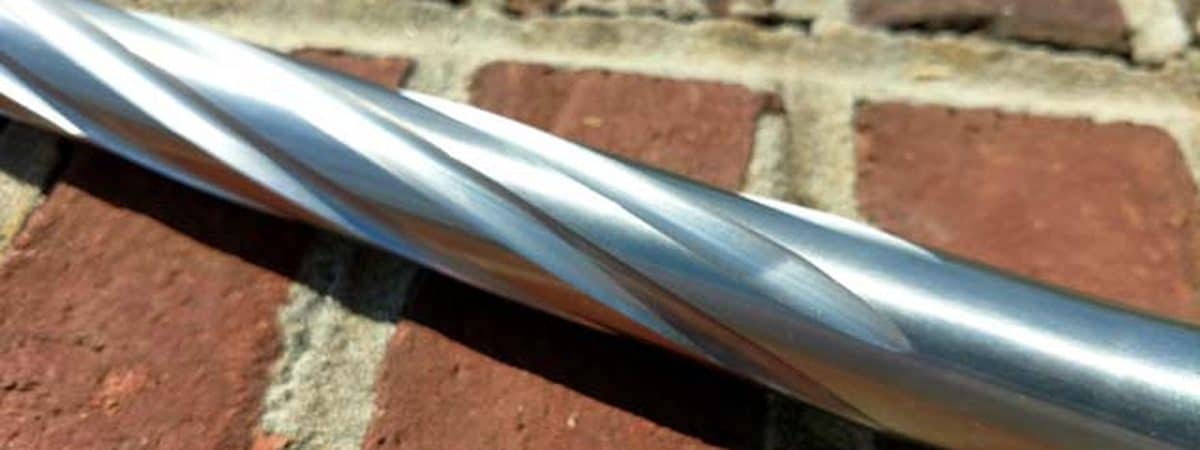

6-7 Spiral Flutes $150 our standard spiral flutes. can be right or left spiral with any realistic helix you want spiral flutes have slightly more weight reduction than straight because the flute width is wider. We also offer straight or spiral lead in.

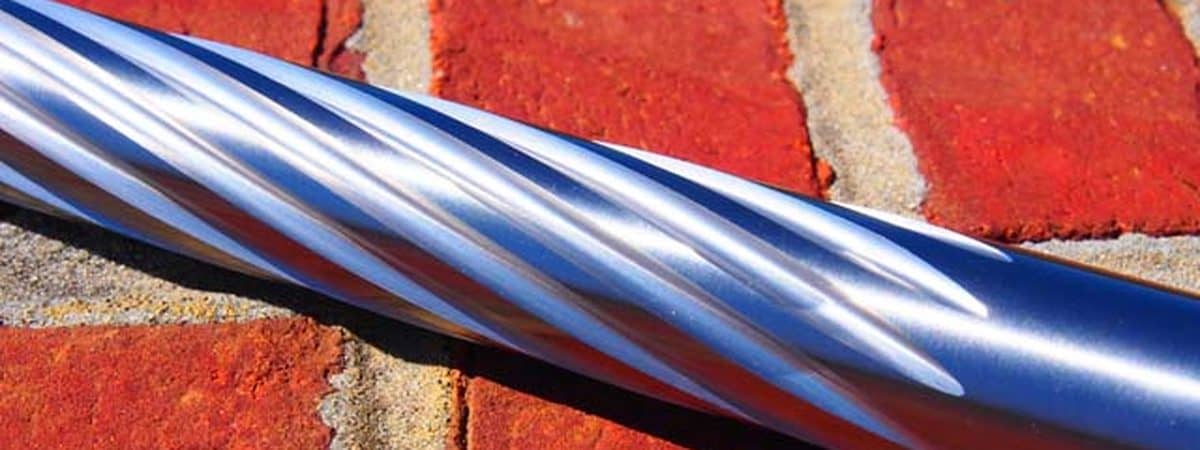

8-10 Spiral Flutes $165 can be done on sporter barrels or heavy barrels, we change the cutter diameter based on flute count and barrel circumference

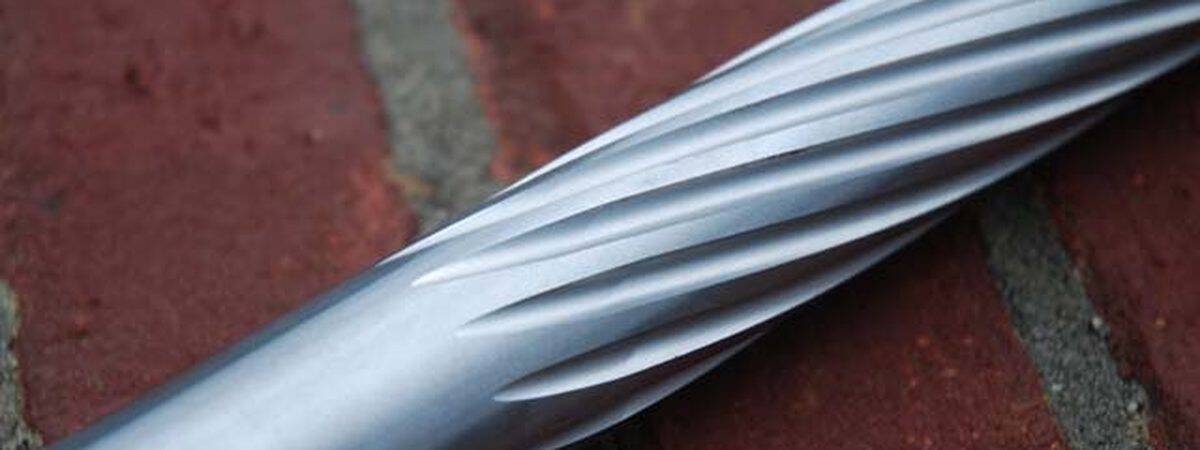

12 Spiral Flutes $180 Generally for heavy barrels, we use narrower cutter width

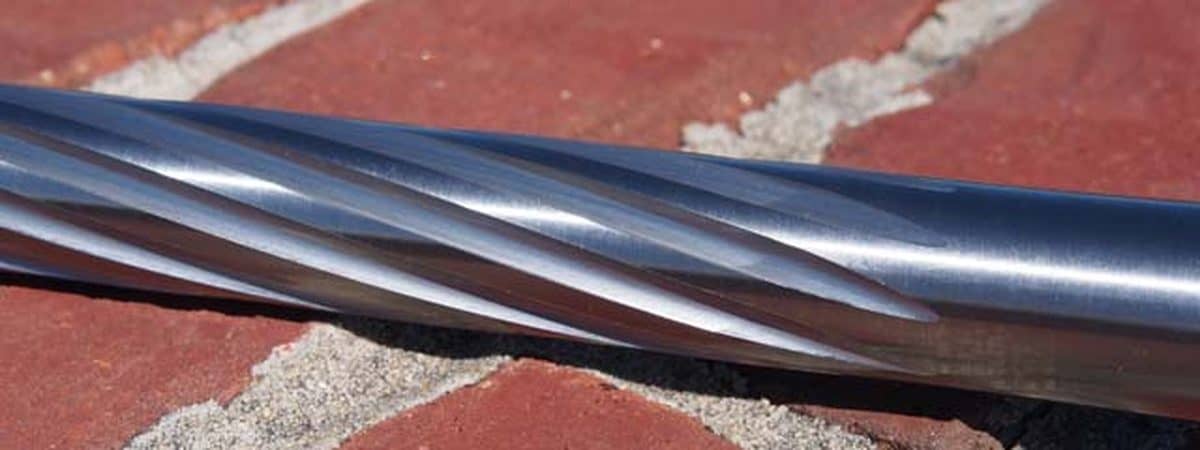

Micro Spiral Flutes $150 We can use narrower cutter width for 6-7 flutes as well

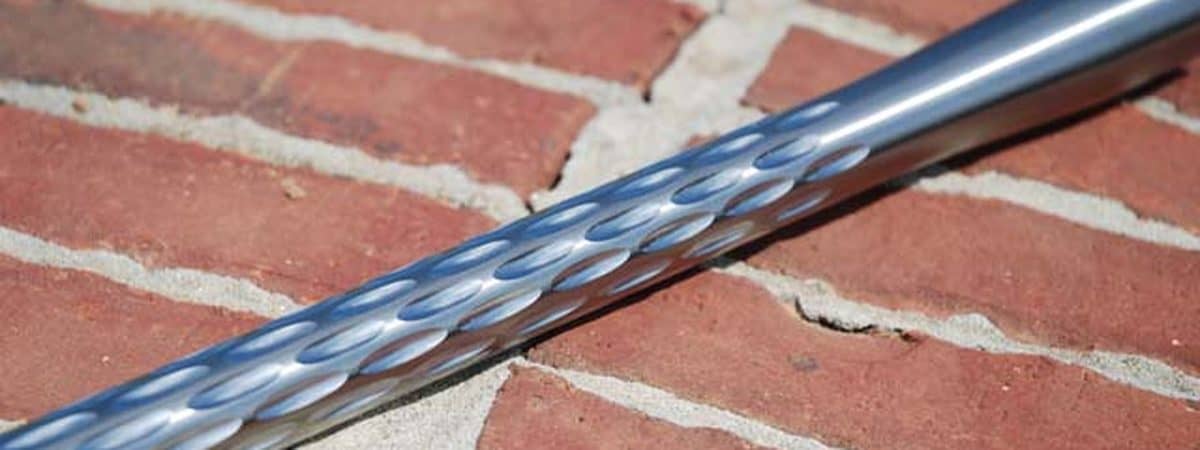

Brux Interrupted Flutes $150 a downright copy of the Brux pattern because of popular demand. Weight reduction is minimal 8-12 flute patterns available based on barrel circumference

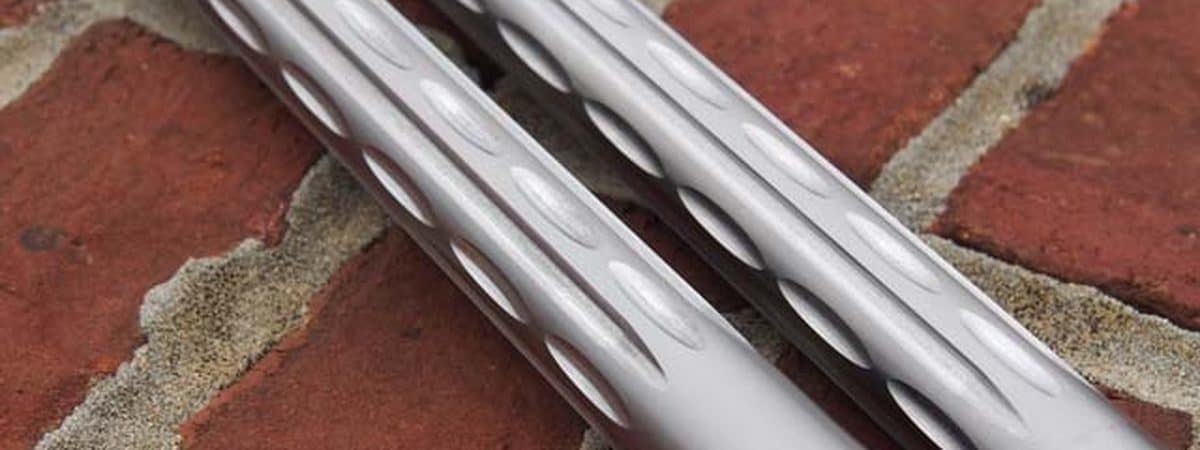

Hybrid Brux Interrupted Flutes $165 a downright copy of the Brux pattern because of popular demand. Weight reduction is minimal 8-12 flute patterns available based on barrel circumference
Bolt Fluting

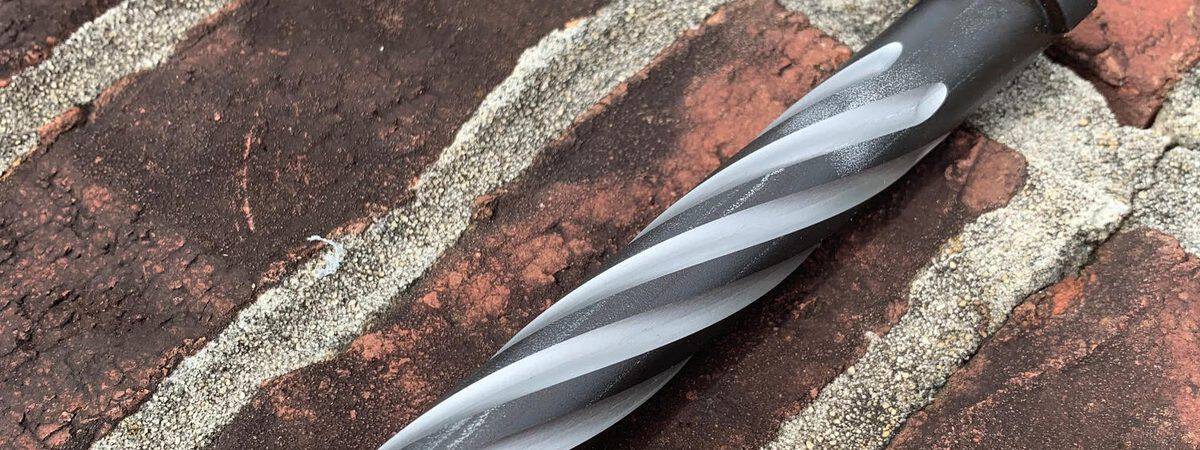

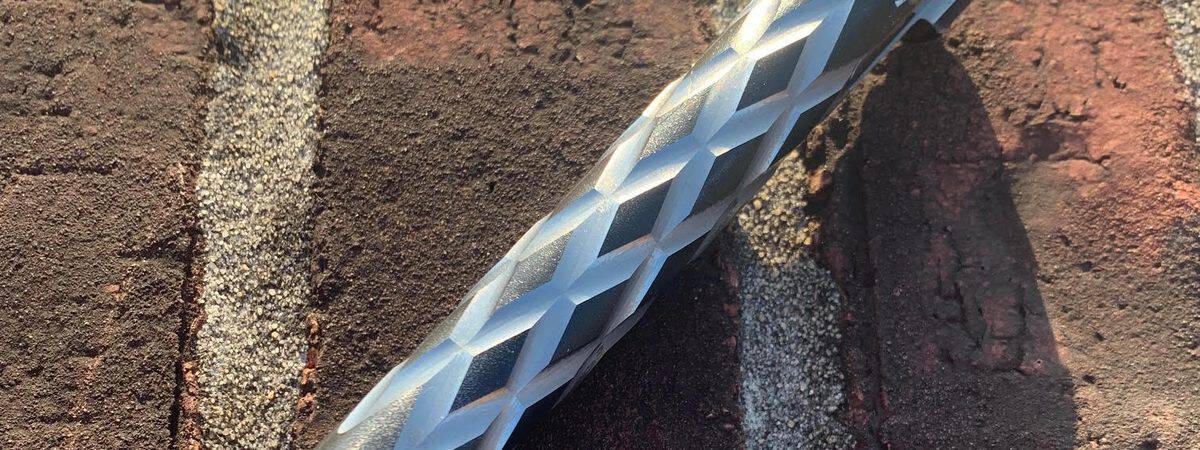

Remington and Tikka Spiral Flute $70 Diamond Flute $80
|
